Bridge erector jacked up oil cylinder

Bridge erector jacked up oil cylinder

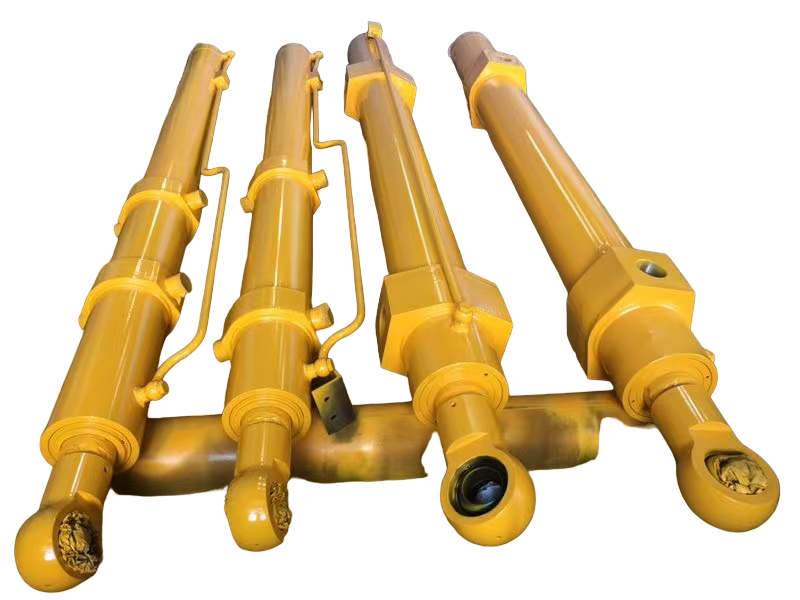

The jacking cylinder of bridge erecting machine is one of the key components in the hydraulic system of bridge erecting machine (also called bridge crane). This type of cylinder is usually used to control and support the jacking motion of the main beam or main arm of the bridge erecting machine to lift and lower the entire mechanical structure.
Delivery time: 3~5 weeks Specifications: Cylinder diameter 180 rod diameter 125 stroke 2300 units: mm Specifications: cylinder diameter 160 rod diameter 110 stroke 2280 units: mm
Contact Us
Overview

Application Areas:

The jacking cylinder of the bridge erecting machine is mainly used in the bridge crane to control the rise and fall of the main beam or main arm.


Functional Features:

Jacking operation: The main function of the jacking cylinder is to push the upward movement of the mechanical structure through the hydraulic system to realize the jacking of the whole mechanical system.

Carrying capacity: The jacking cylinder design takes into account the load that the bridge erector needs to bear to ensure safe and reliable jacking operation.


Structure and working principle:

Block and piston: A jacking cylinder usually consists of a block and a piston connected to it. When the liquid is pushed into the cylinder, the piston is pushed by the liquid pressure, thus achieving the upward motion.

Hydraulic pipeline: The cylinder is connected to the hydraulic system to control the jacking movement through the flow of liquid.


Security Considerations:

Since large lifting machinery is involved, the jacking cylinder design needs to take safety into account, which may include overload protection, protective devices, etc.


Corrosion resistance and high temperature performance:

The bridge eraser may encounter various environments during use, including high temperature and corrosive gases, so the jacking cylinder may need to have good corrosion resistance and high temperature performance.


Automation and control:

Some bridge erector jacking cylinders can be integrated into the automation control system of the whole machine for more efficient operation and control.
